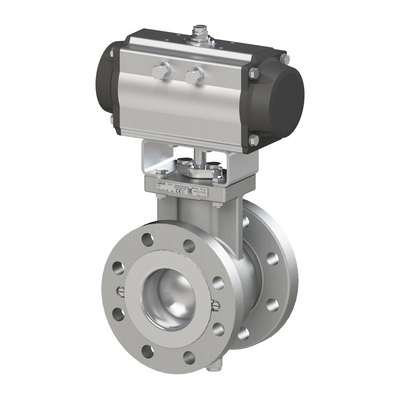

Application: Rotary valve for throttling or on/off service in industrial applications with high flow rates

Standard version for temperatures ranging from –29 to +220 °C/–20 to +428 °F, DN 25 to 300/NPS 1 to 12

Further versions:

• With packing certified according to DIN EN ISO 15848-1
• With double packing, with or without leak monitoring
• With insulating section for a wider temperature range
• With flanges with special faces
• With pneumatic rotary actuator and additional handwheel
• With handwheel
• With heating jacket (on request)
• With additional seals for protection of the bearing
• Version for oxygen service (GOX) up to 13.8 barVersion according to NACE ISO 15156 or MR0103-2007/ISO 17495-1 (on request)
