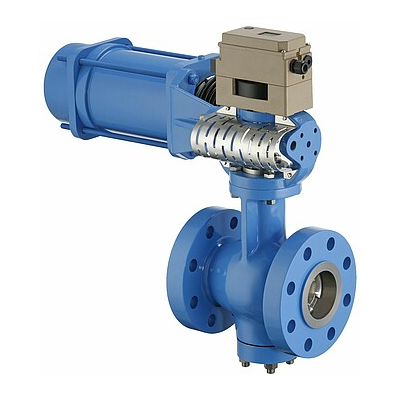

Application: Double eccentric control valve for process engineering and industrial applications
DN 25 to 500 / PN 63 to 160 / Temperature –196 to +500 °C
Valve body made of
• Cast steel
• Cast stainless steel
• Special materials on request
Seat version
• Metal sealing, armored or unarmored
• Soft sealing
• Standard seat factors F 1 / 0.6 / 0.4 / 0.25
Flanged version
• DN 25, PN 63 to PN 160, face-to-face dimensions acc. to EN 558, Table 2, Series 2
• DN 40 to DN 500, PN 63 to PN 160, face-to-face dimensions acc. to EN 558, Table 2, Series 15
• NPS 1, Class 600, face-to-face dimensions acc. to EN 558, Table 2, Series 39
• NPS 1, Class 900, face-to-face dimensions acc. to EN 558, Table 2, Series 54
• NPS 1½ to NPS 20, Class 600 to Class 900, face-to face dimensions acc. to EN 558, Table 2, Series 15
Further versions
• With temperature extension IT2 for cryogenic service, fig. 5
• With high and low temperature extension IT1, fig. 6
• Double stuffing box DSB, fig. 7
• Heating jacket, fig . 8
• Flushing connections, fig. 9
• TA-Luft packing
• Special materials for body and trim
• Noise-reducing features
• Flange version with tongue/groove, male face/female face according to EN 1092-1 RF and RTJ according to ANSI B16.5
