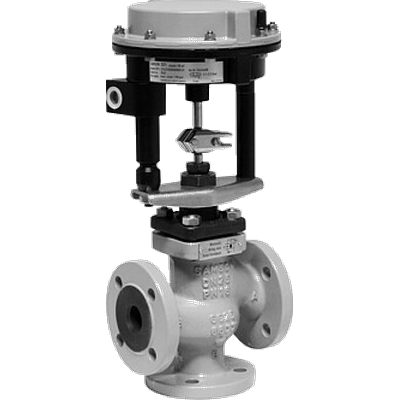

Application: Mixing and diverting valve designed for use in industrial plants
• Nominal size DN 15 to DN 100
• Pressure rating PN 16 to PN 40
• Temperature range –10 to +300 °C
• Electropneumatic actuators with integrated i/p positioner for Type 3323-IP
• Pneumatic actuators for Type 3323-PP
• Electric actuators for Type 3323-E1 or Type 3323-E3
Valve body materials:
• Cast iron for PN 16
• Spheroidal graphite iron for PN 25
• Cast steel for PN 40 (up to DN 50) as well as for PN 16 and 40 (DN 65 and larger)
• Stainless steel for PN 40 (up to DN 50) as well as for PN 16 (DN 65 and larger)
